Bipedal Leg Joint Actuators

Actuator sourcing guidance for humanoid hips, knees, ankles, and balance joints where overload, stiffness, thermal behavior, and fast replacement matter.

Target Buyer:For teams building lower-body prototypes that need actuator samples capable of repeated gait testing.

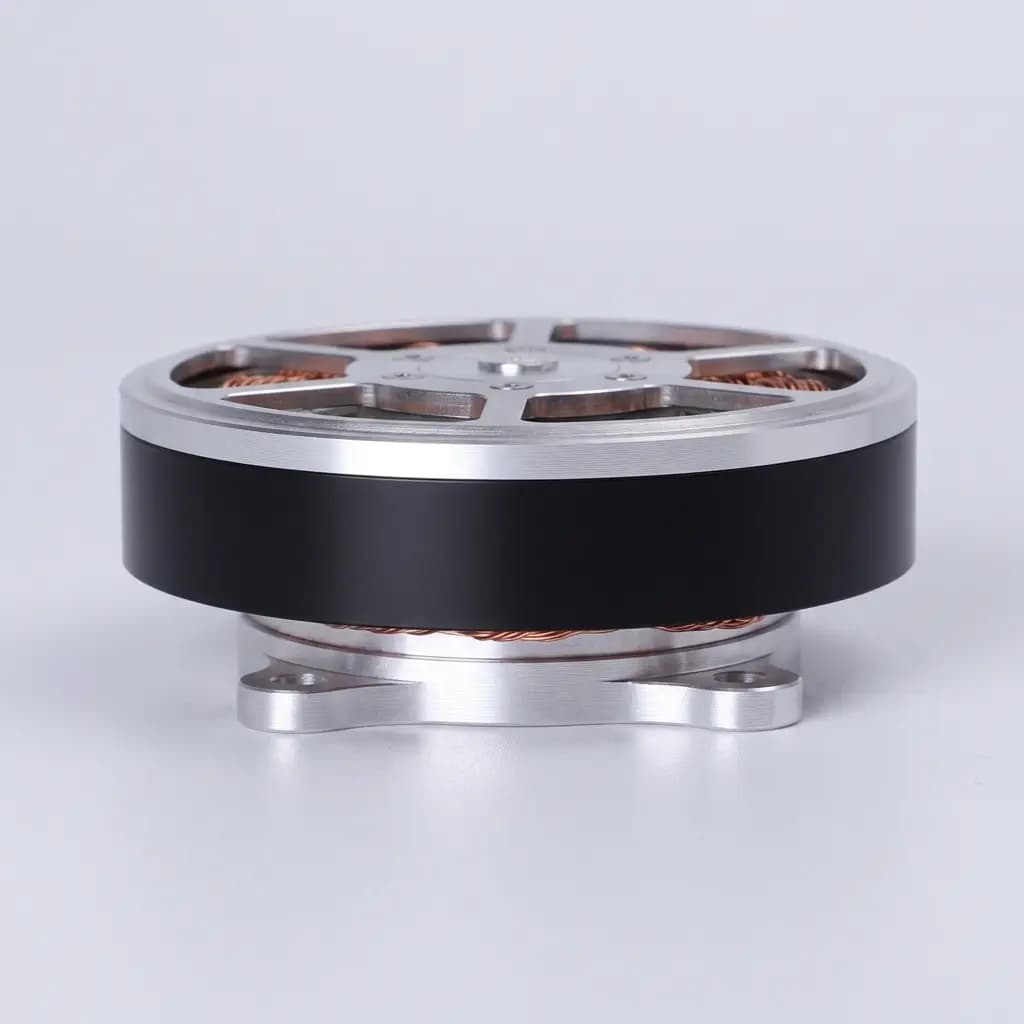

High torque actuator reference for bipedal humanoid leg joints

Reference visual for selection context. Confirm controlled drawings, CAD path, and test records for shortlisted models.

Engineering Asset Status

Reference visuals, controlled records on request

Current site images are reference selection visuals for catalog navigation. They should not be treated as final factory photos, CAD drawings, test records, or lot-specific inspection documents. For shortlisted models, request the controlled packet tied to model code, drawing revision, test condition, and sample lot.

Request validation records

Public now

Reference visuals, product-family routes, RFQ class matrices, and validation checklists for early selection.

Request before PO

Controlled datasheet, drawing or CAD path, torque-speed or thermal record, wiring notes, and sample or OQC evidence.

Not claimed publicly

Verified factory-floor photos, teardown images, and lot-specific test reports are not presented as public evidence until real project assets exist.

Solution Highlights

  • Hip, knee, and ankle actuator shortlist support
  • Overload, impact, brake, and thermal criteria for walking tests
  • Replacement and spare-sample planning for aggressive prototype cycles

Common Use Cases

  • Bipedal walking prototypes
  • Humanoid lower-body test stands
  • Exoskeleton and legged robot actuator trials

Implementation Focus

  • Continuous torque, peak event, reducer stiffness, and impact tolerance
  • Brake behavior, recovery load, and safe holding in powered-off states
  • Spare parts, replacement lead time, and revision traceability during testing

Application Evaluation Matrix

Overload handling

Typical Range
Defined by peak duration and thermal path
Buyer Relevance
Leg joints see aggressive test loads and need practical overload margins.

Application Validation Evidence Map

This map turns the solution context into concrete document requests. Use it to decide which records, interface details, and sample checks should be available before moving from shortlist to PO, sample testing, or pilot planning.

Overload and impact load

Buyer Risk
Walking tests introduce peak events that exceed the reducer, output bearing, or thermal design assumptions.
Documents to Request
Torque-speed envelope, peak-duration assumption, output support boundary, and overload discussion note.
Test Record
Thermal-rise note, load-holding or overload check, and sample inspection record after aggressive bench testing.
Interface Input
Hip, knee, and ankle load case, robot mass, payload, gait phase assumptions, and expected peak duration.
Go / No-Go Signal
The actuator class can be tested against a defined peak event instead of an undefined walking claim.

Brake and safe holding

Buyer Risk
The leg cannot hold safely during power-off, fall recovery, fixture testing, or transport state.
Documents to Request
Brake option note, holding torque boundary, wiring assumption, and brake release behavior.
Test Record
Brake holding check or supplier acceptance note matched to the selected actuator class.
Interface Input
Required holding posture, gravity load, fail-safe expectation, controller behavior, and release sequence.
Go / No-Go Signal
The team knows whether the sample needs an integrated brake, external brake, or fixture-level safety support.

Thermal continuous duty

Buyer Risk
A leg actuator passes a short bench test but overheats during repeated gait cycles.
Documents to Request
Thermal path assumption, continuous torque note, motor and driver current boundary, and cooling constraint.
Test Record
Temperature-rise record under a comparable current or duty-cycle profile when available.
Interface Input
Duty cycle, ambient temperature, mounting material, heat-sink path, current limit, and test duration.
Go / No-Go Signal
The sample validation plan includes a thermal stop condition before pilot-order discussion.
Request validation documents

Related RFQ Classes

These standard classes give buyer teams a practical starting point for samples, fixture planning, and engineering quotation scope before custom interfaces are frozen.

HRA-R70-KNEE

Mid-load knee and ankle rotary class

Product Family
Humanoid Robot Actuator Catalog

Knee-light, ankle pitch/roll, waist, shoulder-heavy

Output Window

50-150 Nm class

18-45 Nm continuous

80-150 Nm peak

20-80 rpm output class

Integration Focus

CAN FD / EtherCAT options

Dual encoder preferred

Brake recommended for leg axes

Validation Gate

Shortlist after robot mass and duty cycle

Thermal rise, overload duration, backlash, brake behavior, and shock load.

HRA-R95-HIP

Heavy hip actuator class

Product Family
Humanoid Robot Actuator Catalog

Hip pitch/roll/yaw, heavy knee, impact test rig

Output Window

>150 Nm class

60-120 Nm continuous

220-450 Nm peak

10-45 rpm output class

Integration Focus

CAN FD / EtherCAT options

Dual encoder plus torque feedback option

Brake and emergency behavior required

Validation Gate

Engineering review before sample release

Continuous torque envelope, housing heat path, impact load, and bearing support.

RFQ Preparation Checklist

  1. Hip, knee, and ankle torque-speed table
  2. Expected robot mass and payload
  3. Duty cycle, peak event duration, and ambient temperature
  4. Brake, encoder, protocol, and controller requirements

Risk and Mitigation

  • Walking test destroys the first sample batch: Plan spare units, define overload windows, and verify reducer/bearing load assumptions before field testing.

Recommended Products

Force-control actuator reference for bipedal leg development
Reference visual: Force-control actuator reference for bipedal leg development
Precision reducer component for bipedal robot actuator stacks

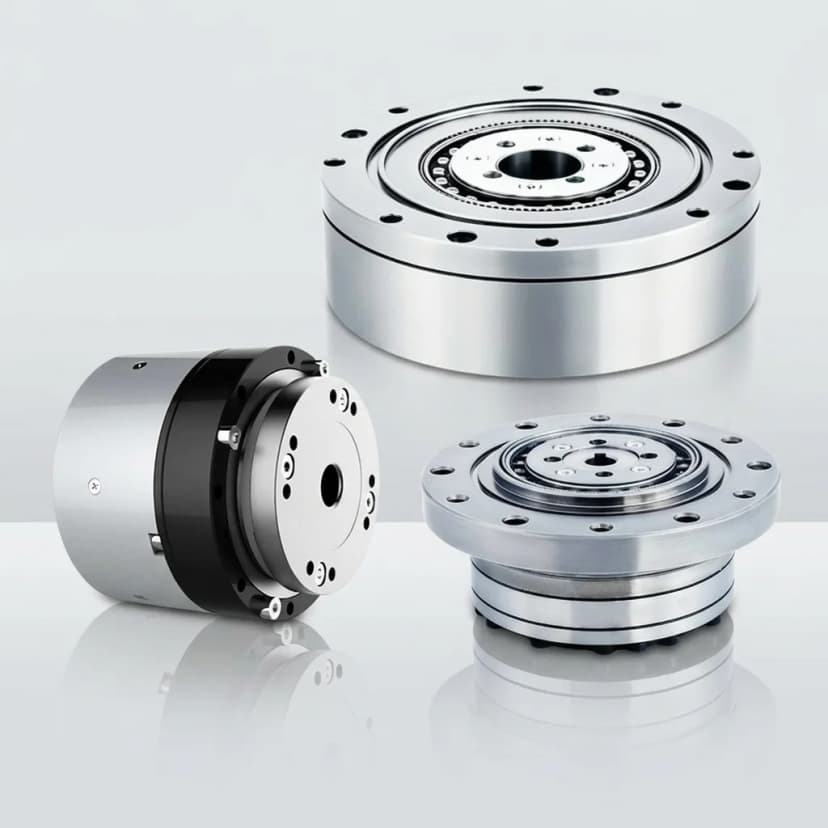

Reference visual: Precision reducer component for bipedal robot actuator stacks

Buyer FAQ

Should we order spare leg actuators?

For aggressive walking prototypes, spare samples are recommended because overload and mechanical crashes are common during early testing.

Procurement guide

Read Before Locking the Application Validation Plan

Use the procurement guide when this solution context needs joint mapping, load-case evidence, sample timing, and buyer-side validation gates before supplier review.

Open guide
Sourcing Humanoid Robot Actuators in 2026

A buyer-side guide for pre-modular humanoid actuator sourcing: selection risk, evidence requests, sample readiness, and pilot supply controls.

Use it to check
  • Joint-by-joint load cases and prototype risk notes
  • Application evidence that should exist before sample PO
  • Decision gates for shortlist, sample test, and pilot planning

Next sourcing step

02 Application validation

Then prepare OEM sample execution

After the application risk is mapped, move accepted load cases into sample quantity, controlled-document purpose, revision baseline, and pilot handoff planning.
